Introduction

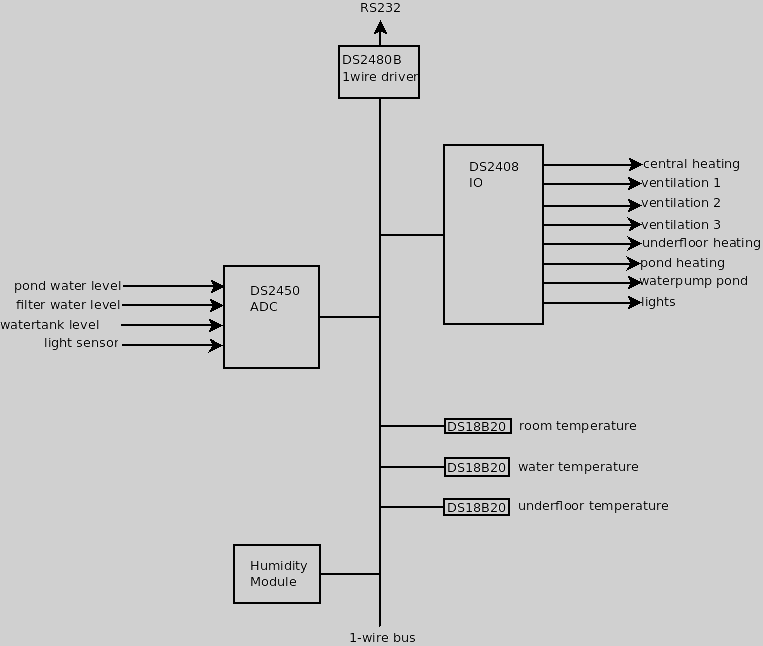

This website contains my experiences with measuring and controlling and electronics, for this I use the 1-wire devices of Maxim. The 1-wire components use a signal bus on two wires, the power of the components can also be derived from signal bus. The bus can be controlled via RS232, USB or I2C. The bus usually has a baudrate of 19k2. Each device has its own identifier of 64 bits on the bus. The 1-wire devices can be a  temperature sensor, 16 bit ADC, IO. With the use of a linux server and OWFS it  is possible to build all kinds temperature controls and weather stations etc.




Read me first!


Applications


Kas

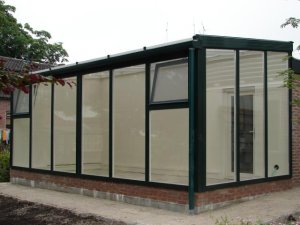

After third time to be moved, I had the opportunity to build a greenhouse for my tropical plants and reptiles of my dreams with  the experiences and knowledge from previous greenhouses.  Previous I used common electronic regulations, now the  1-wire devices  of Maxim.  Recently i replaced the controlling pc with a Beaglebone Black.

See here de status page of the greenhouse



Temperature

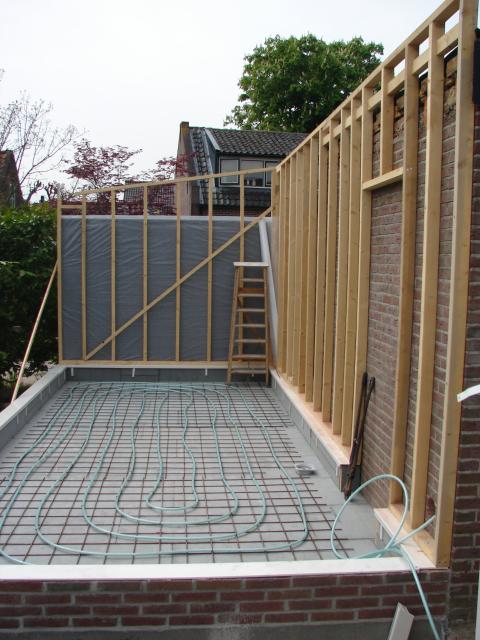

My greenhouse is heated by its own central  heating system with underfloor heating . The temperature control is a simple on / off switch via a reed relay or solid state relays with this schema, the underfloor heating  is controlled by an electric valve Danfoss TWA-K. Furthermore, there are three low Yaga convector radiators for heating placed in front off the windows. The advantage of this radiator is that they are made ​​of copper and therefore more resistant to moisture.





In summer there is green mesh screen of 80% of horticulture outside the windows and homemade electric windows and air strips openers provide ventilation. Shielding the sun on the plastic roof, with a milky color, has little influence on the temperature. There are air strips at the top of the rear wall and top of the windows, the ventilation will open in phases with increasing temperature, the strips above the windows first and then the rear wall. When the temperature rises further it will also open a window.



The water

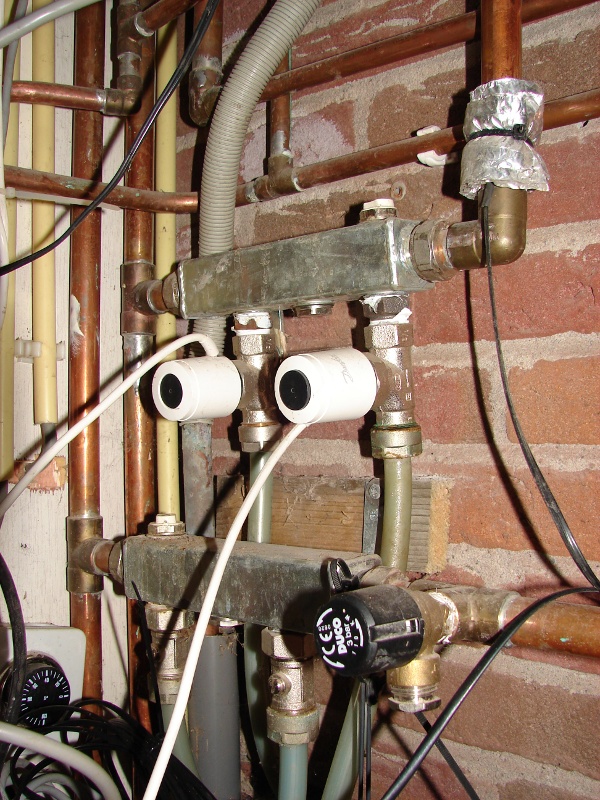

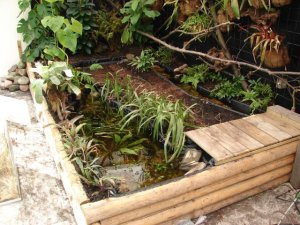

The heating of the pond water is in the same way as heating the floor, this happens with a plastic pipe on a roll in the waterfilter, also connected to the central heating

 More photo's

There is also a float sensor in the filter, the pump will be off when water is too low and a sensor in the pond itself as the water gets too high by a clogged filter. These sensors are read by a DS2450,. The water in the filter (under the boards) is automatically replenished through a rain barrel with a mechanical float valve.



The air humidity

The humidity is measured by TAI8540A 1-Wire Humidity Module. The plants are sprayed  automatically at regular intervals with a 12V submersible pump and nebulisers of Gardena at regular intervals when the temperature is high enough. The water is pumped from the filter, the water temperature, which has nutritional value for the epiphytes and the pond water is also replaced.
